SDF


FAD:
1,34 - 18,4 m3/min
47 - 650 cfm

Pressure range:
8 - 13 bar
115 - 190 psig

Motor range:
45 and 110 kW
60 and 150 HP

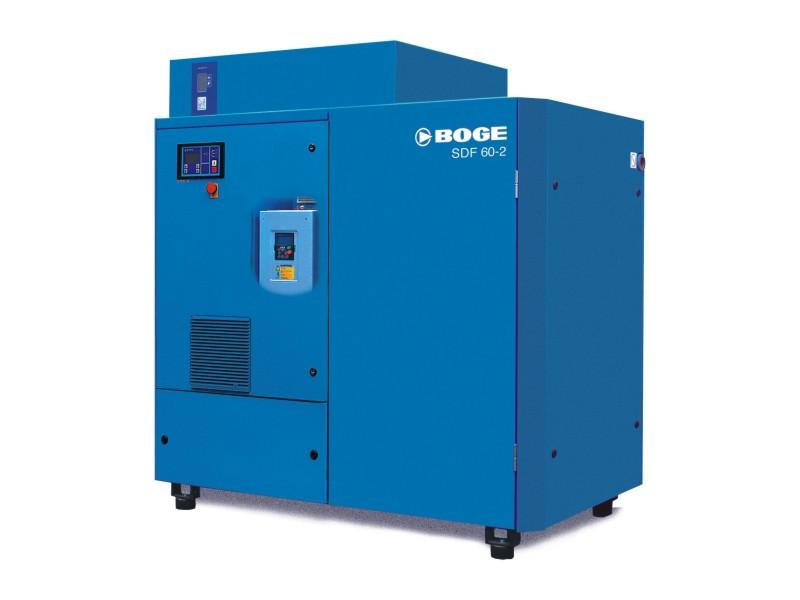

SDF

SDF series frequency controlled compressed air stations with integral dryer

The complete solution: screw compressor (S) with integral dryer (D) plus frequency control (F).
The SDF series combines the many features of the SD range with all the energy saving benefits of frequency control.

  • Integral dryer with integral frequency convertor provides a complete solution at a very competitive price
  • Space-saving design
    - reduced footprint
    - costs for  installation of separate dryer and convertor eliminated
  • Dryer module is simply dropped into the top of the compressor package
    - fast and easy access
  • Cyclone separator with condensate drain fitted before the dryer as standard
    - bulk condensate eliminated before dryer
  • Dryer fitted with electronically operated, level-controlled condensate drain as standard
    - loss free removal of condensate
High availability of the compressor
- in the unlikely event of a dryer malfunction a simple bypass ensures continual availability of the compressor
