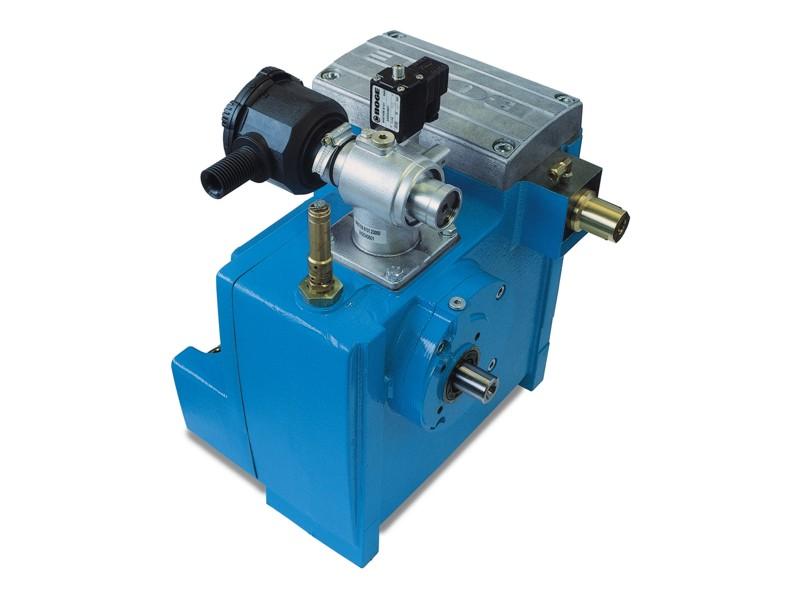

CM compact module 2.2 - 7.5 kW
It’s got everything The modular design of the compressor integrates all service components.
- Oil separator cartridge
- just one service cover to remove and all components are accessible
- New generation of multi-function intake controller with integrated 2-3 way solenoid control valve
- No leaks - Safe operation
- Silenced intake air filter with paper filter cartridge
- Extracts 99.9% of particles larger than 3 µm
- Minimum pressure/non-return valve
- No piping - No leaks
- BOGE’s own design airend profile for maximum efficiency
- Large delivery volume - Unique high efficiency design - Ultra-reliable
- Special iron casting with inherent silencing features
- Already silenced at source.
- Thermostatic oil by-pass valve
- Easily accessible from the outside
- CNC-machined housing
- Minimises leakage
All major components are integrated eliminating interconnecting pipework and joints. Oil leakage is practically ruled out! Routine service parts are easily accessible from the outside.
Choice of drive unit Direct drive or belt drive
- Electric drive (50 or 60 Hz)
- Hydraulic drive
- Combustion engine
- Cardan shaft
Shhhhh! Silence
- Minimum noise.
Low-vibration.
- High performance damping is achieved through the special lamellar graphite casting. Extra silencing is unnecessary.
Choice of application
- Stationary in machinery or mobile in vehicles.
- Its compact design makes it ideal for confined spaces.
|
